O’Reilly – .63 A/R Stage III T04E T3/T4 44 Trim Compressor Turbo+Oil Line+Manifold

Turbo Specifications:
Perfect for 1.6L-2.5L engines
Perfect for 3.2L-5.0L engines in twin turbo application. capable to 800HP
Boost pressures are 7psi(.5 Bar) to 21psi(1.5 Bar)

Exhaust (Turbo Manifold) Flange : T3 T4 4 bolt Flange Patterns
Exhaust (Downpipe) Flange: Standerd T3 5 bolt downpipe flange pattern
Cooling Type: Oil Cooled
Wastegate: External wastegate
Horse Power: Boost Horse Power up to 300+HP
Bearing Type: Floating Bearing

Compressor:
Trim: 44
A/R: .5
Inducer: 50.5
Exducer: 76

Turbine:
Trim: 73
A/R: .63
Inducer: 65.5
Exducer: 55.9

Oil Specifications:
* OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm
* OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm

Manifold Specifications:
Material: Cast Iron
Mounted type: Top mounted / High mounted
Turbo Flange: T3
Wastegate size: 38mm. You can plate it off if intending to use internally wastegated turbo (the blank plate is included)

Package Includes:
1 x Turbocharger Kit
1 x Braided Turbo Oil Feed Line
1 x Braided Turbo Oil Return Line
1 x Manifold

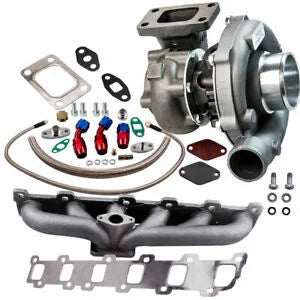

(You will get exactly as shown in the picture above)

* Condition: 100% Brand New
* Professional installation is highly recommended (No Instruction Included)
*
